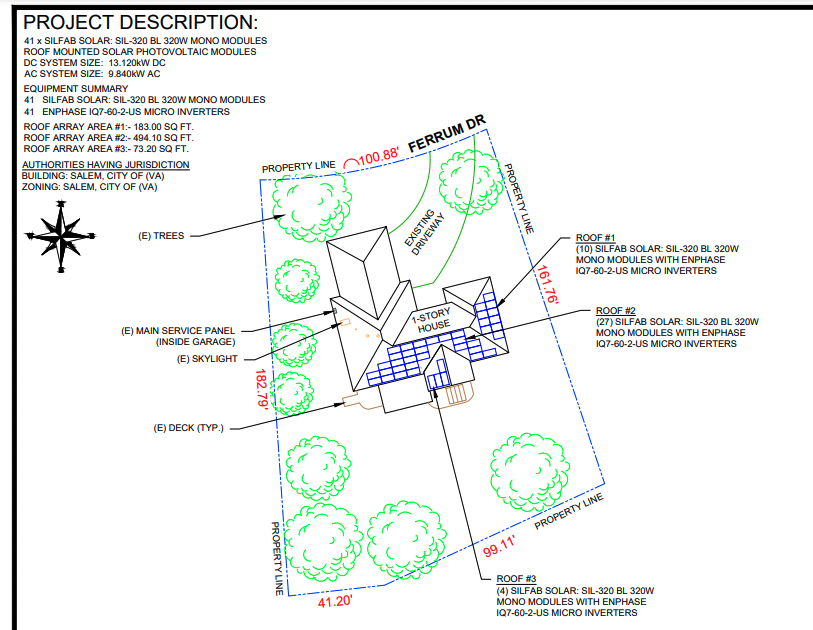

Plot Diagram/Design

This is typically a 13 page document that contains the project blueprints of the project. It is common to find the following:

• Module Manufacturer
• Inverter Manufacturer
• Meter Manufacturer
• AC/DC sizing
• Count of the arrays with the location they were installed
• Array pitch and azimuth
